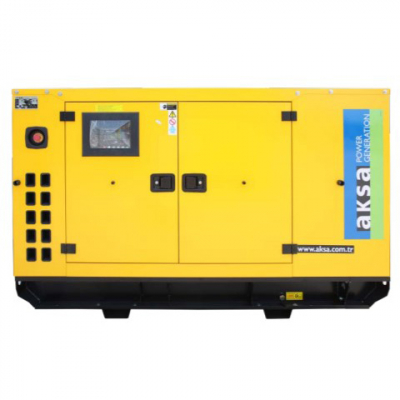

AKSA APD110C
100kVA Generator
Standby: 88kW/110kVA
Prime: 80kW/100kVA
Engine: Cummins 6BT5.9G2
Controller: DSE6120

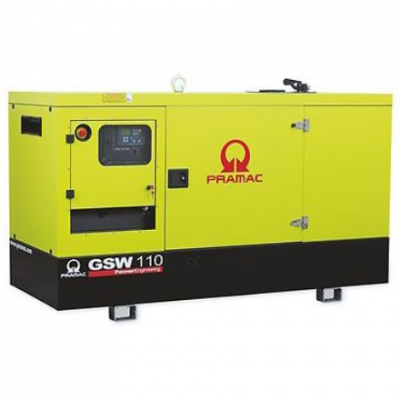

Pramac GSW110P
100kVA Generator
Standby: 92kW/115kVA
Prime: 83kW/104kVA
Engine: UK Built Perkins ECP28-VL/4
Controller: COMAP AC03
Price: £12,640 + VAT
100kVA Generator FAQ
1. What is the typical size of a 100kVA Generator?
2,600mm long x 1,100mm wide x 1,700mm high
2. What is the typical mass of a 100kVA Generator?
1,500kg without fuel
3. What is the typical fuel tank capacity of a 100kVA Generator?
180 litres
4. What is the typical run time of a 100kVA Generator?
8 hours full load
5 . What is the typical fuel consumption of a 100kVA Generator?
22 litres of fuel per hour
6 . What is the typical sound attenuation of a 100kVA Generator?
79 dBA at 1 meter and 69 dBA at 7 meters (dBA (A-weighted decibels) is an expression of the relative loudness of sounds as perceived by the ear)
If you have any other questions about 100kVA generators or what to would like to purchase one please fill in the form to the right or contact us.
Alternatively you can find more information on 100kVA generators below.
Contact us about your Generator requirements
100kVA generators are one of the most popular standby generators. These diesel generators are rated over the 100kVA for prime use (normally 110-115kVA), however standby by generators are rated slightly under their prime vaule for stanby power. This is to account for an extra power requirments of equipment loading up, after a power cut.
You can find more information on our 100kva Generators here:
A standby 100kva generator is a backup electrical system that operates automatically, within seconds of an outage an automatic transfer switch (ATS) senses the power loss and starts the generator. This can be paired with a UPS system to ensure the load isn't dropped at all, not even for a second. The standby generator then begins supplying power to the connected equipment. After the mains power returns, the automatic transfer switch transfers the load back to the mains and the standby 100kVA generator is shut off.
We offer generators from a range of manufacturers including AKSA Generators and Pramac Generators. If you are looking for a Uninterruptible Power Supply (UPS) system to work with you standby generator for a instant switch over, we supply UPS from Riello UPS, APC UPS and more.
